CT-24

Back to all products

Low profile 24" flat panel speaker system that is custom built to cover 4 people sitting at a table
Available for Purchase
Enquire
Brown Innovations CT-24 Overhead directional speaker with Myriad amplifier

Home » Overhead Arrays » CT-24

Overhead speaker for tables

Custom built replacement for the Quadeo Sound Dome, allowing coverage over a 4 seat table

Available for Purchase
Enquire

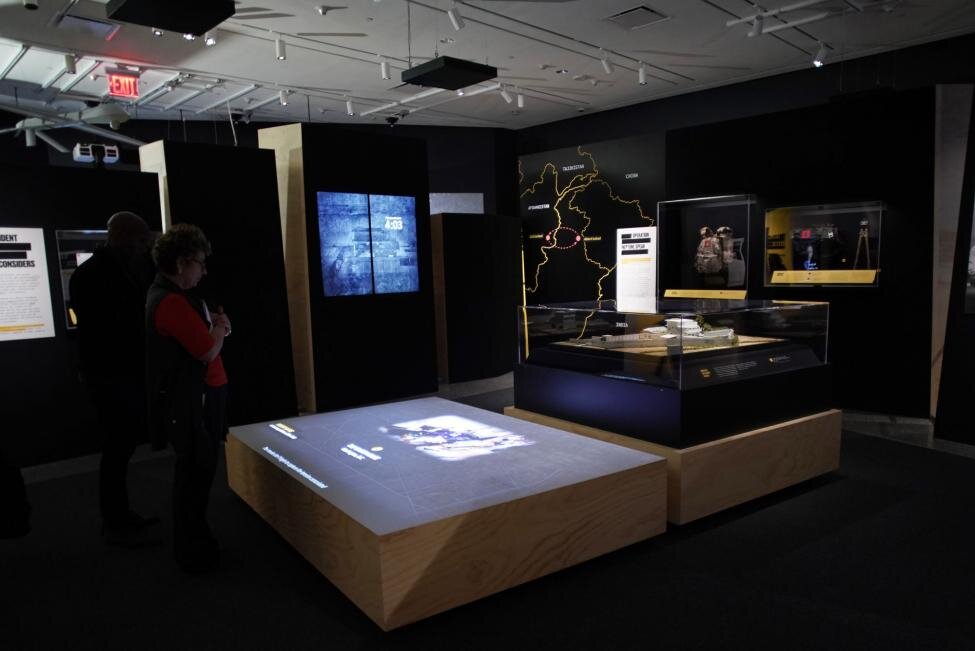

CT-24 Overhead array in 9/11 museum NY

Coverage

Adaptable spread

The CT-24 can be specified for a wider than normal sound field to allow more coverage. It can also be connected into a T-Coil system to allow the hard of hearing to connect directly into the sound.

Contact us

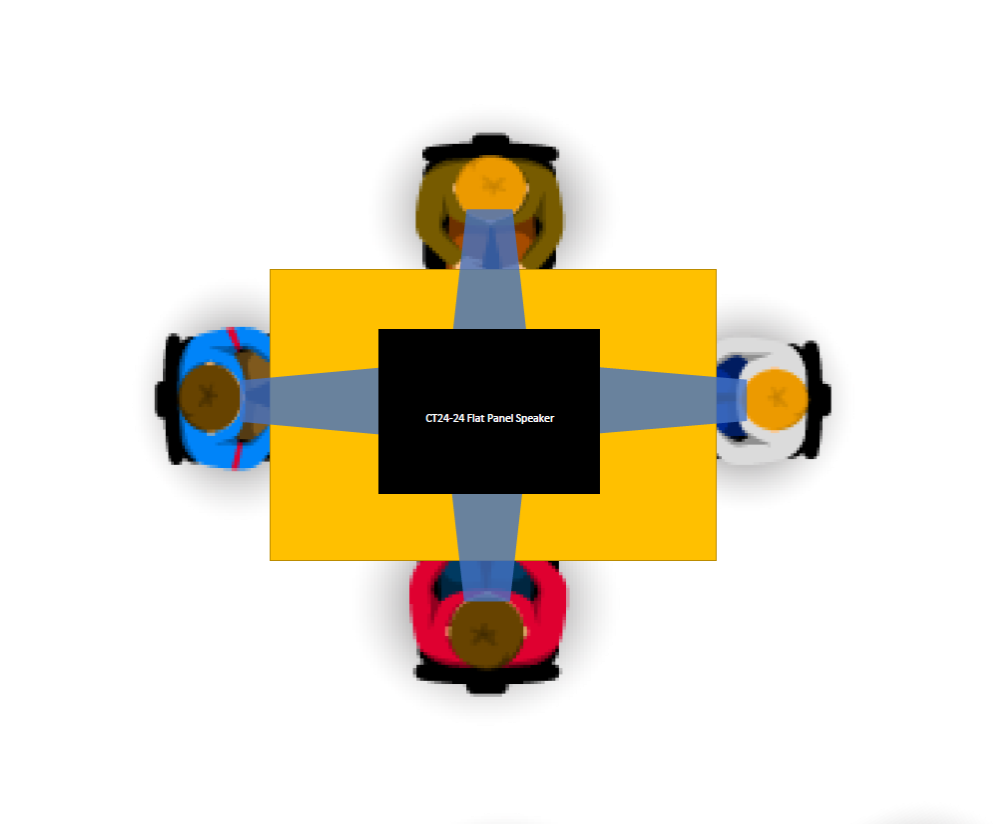

CT-24 Table dispersion

Custom built

Made for your specifications

This speaker is custom tuned with the dimensions of the table seats below it to ensure all listeners get a focused sound at their seats.

Enquire

Discover which directional speaker matches your requirements

Answer a few questions to learn what’s best for you…

Features

Options

Available with Smart volume to attenuate the output volume when the ambient levels change up or down.

Spread

The sound field of the speaker can be adjusted to give a target field of approximately twice the speaker size. Alternatively you can keep it tight to a single person.

Sound Quality

Due to the phased array technology, the frequency response is wider than some other models and gives a fuller sound.

  • Experts in our field
  • Widest range of directional sound systems in Europe
  • Options for purchase or hire

Images

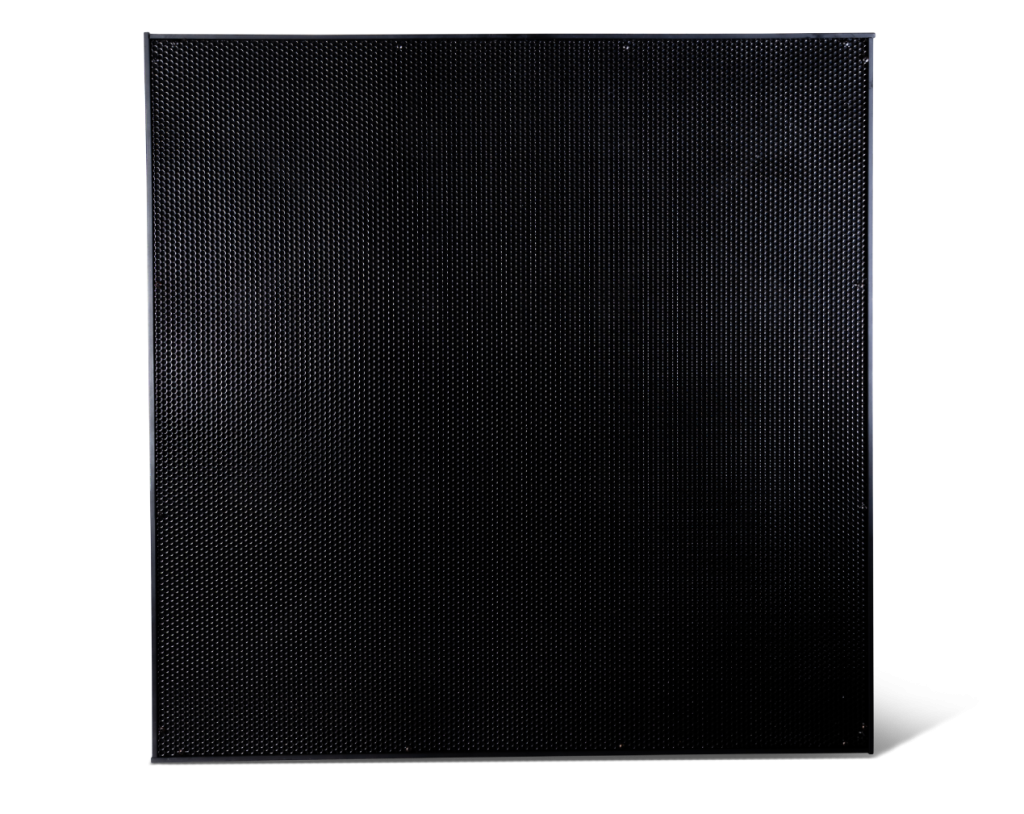

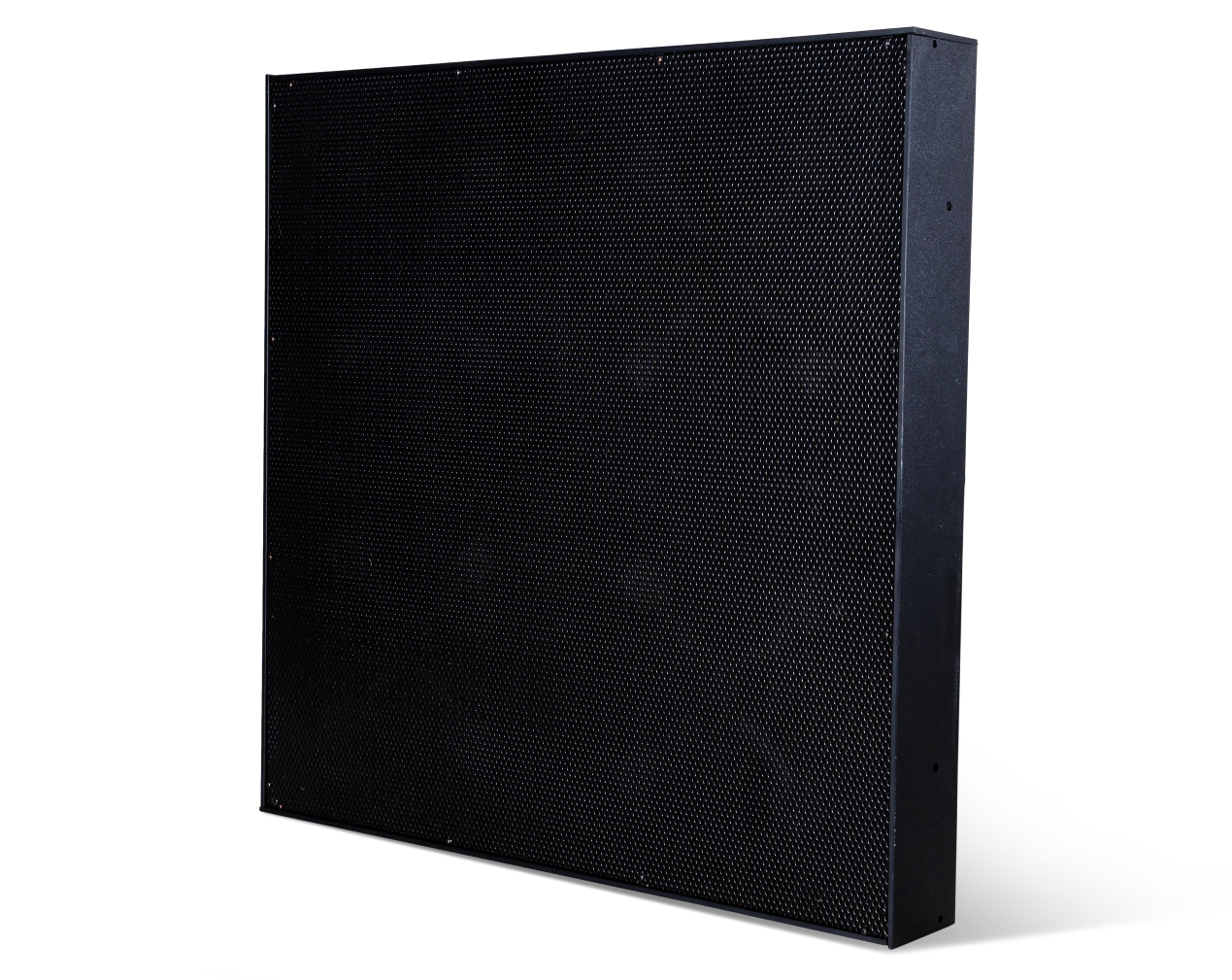

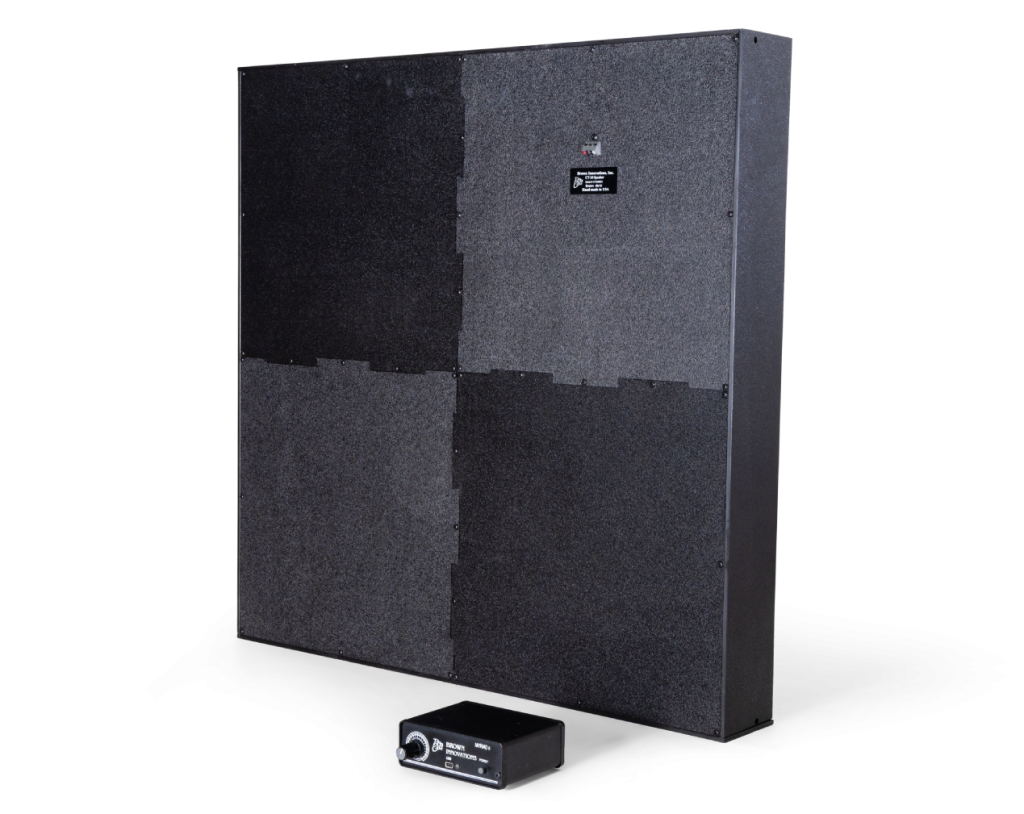

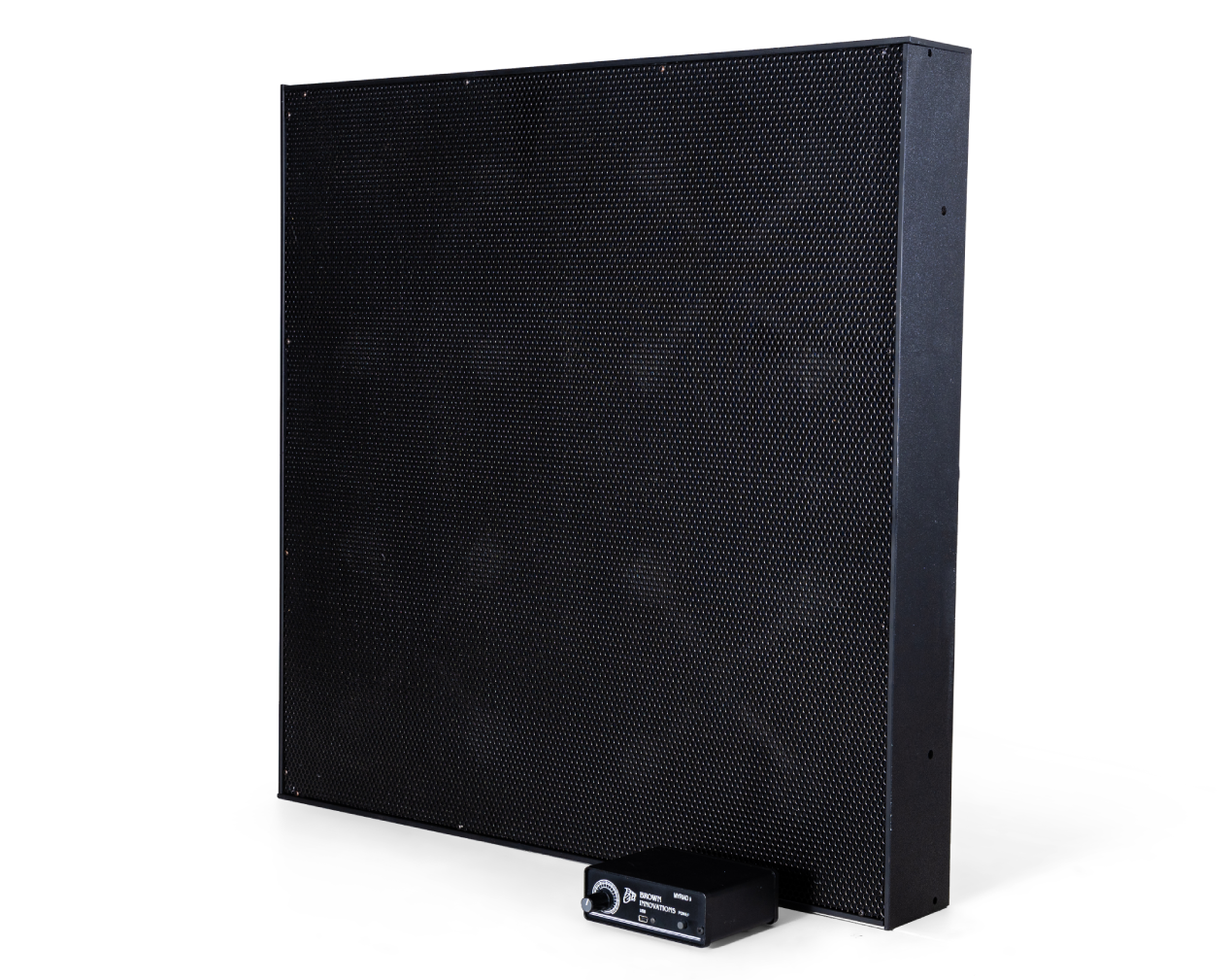

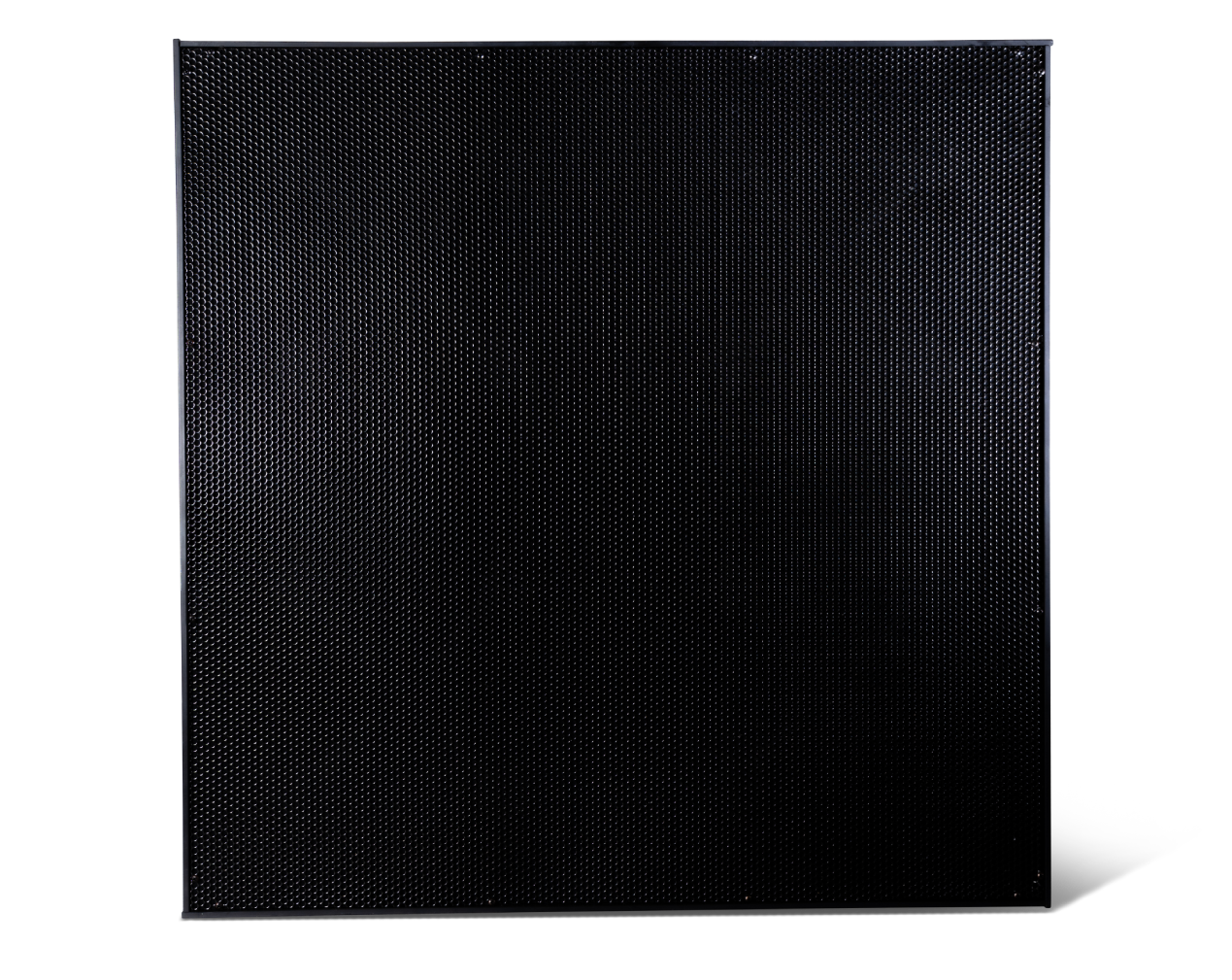

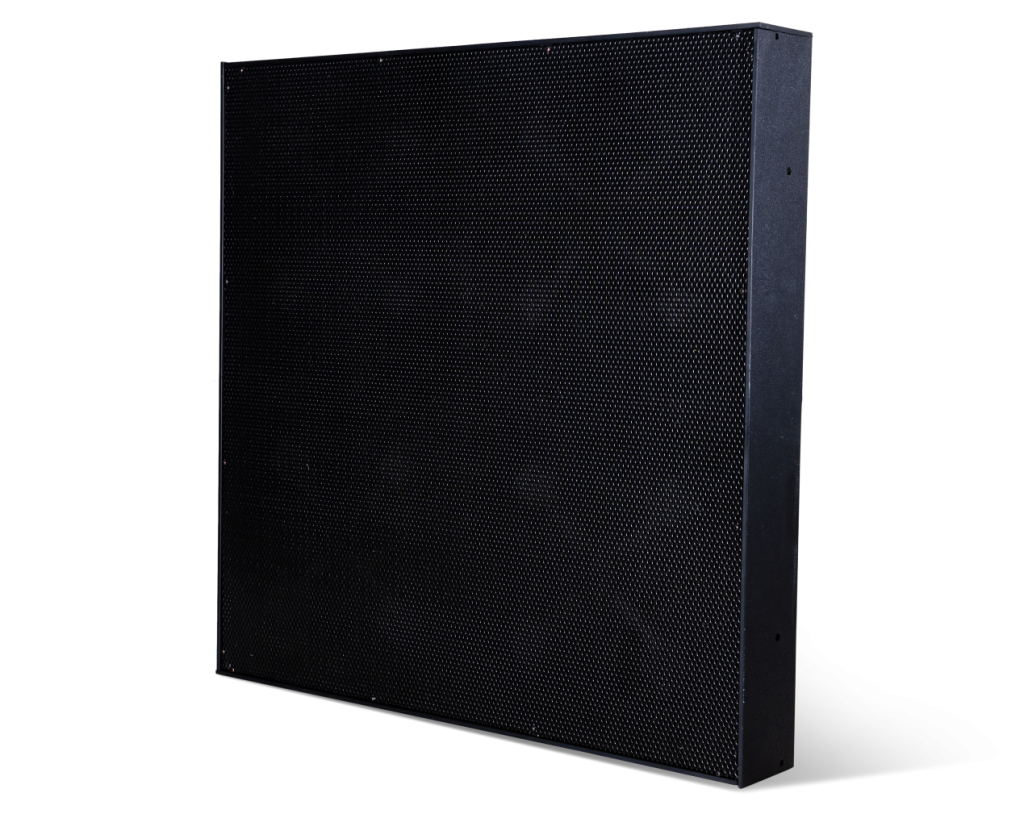

Brown Innovations CT-24 directional speaker CT-24 reverse image Brown Innovations CT-24 Overhead directional speaker with Myriad amplifier CT-24 directional speaker

Specifications

Frequency Response

250Hz - 15 KHz, +/- 3dB * * when using Myriad amplifier

Nominal Output Power and Impedance

Power output sufficient for loudest conditions: 20 watts continuous per channel 50 watts peak per channel

Input Impedance

10 KOhms

Mounting Height

Recommended mounting height 8 to 9.5 feet (2.44 m to 2.9 m)

Amplifier Power Supply

15Vac 1240 Amp 120 Vac external wall pack supplied 100 Vac and 220 Vac available on request
