Sound Beam SB24

Back to all products

Compact speaker ideal for use with screens
Available for Purchase
Enquire

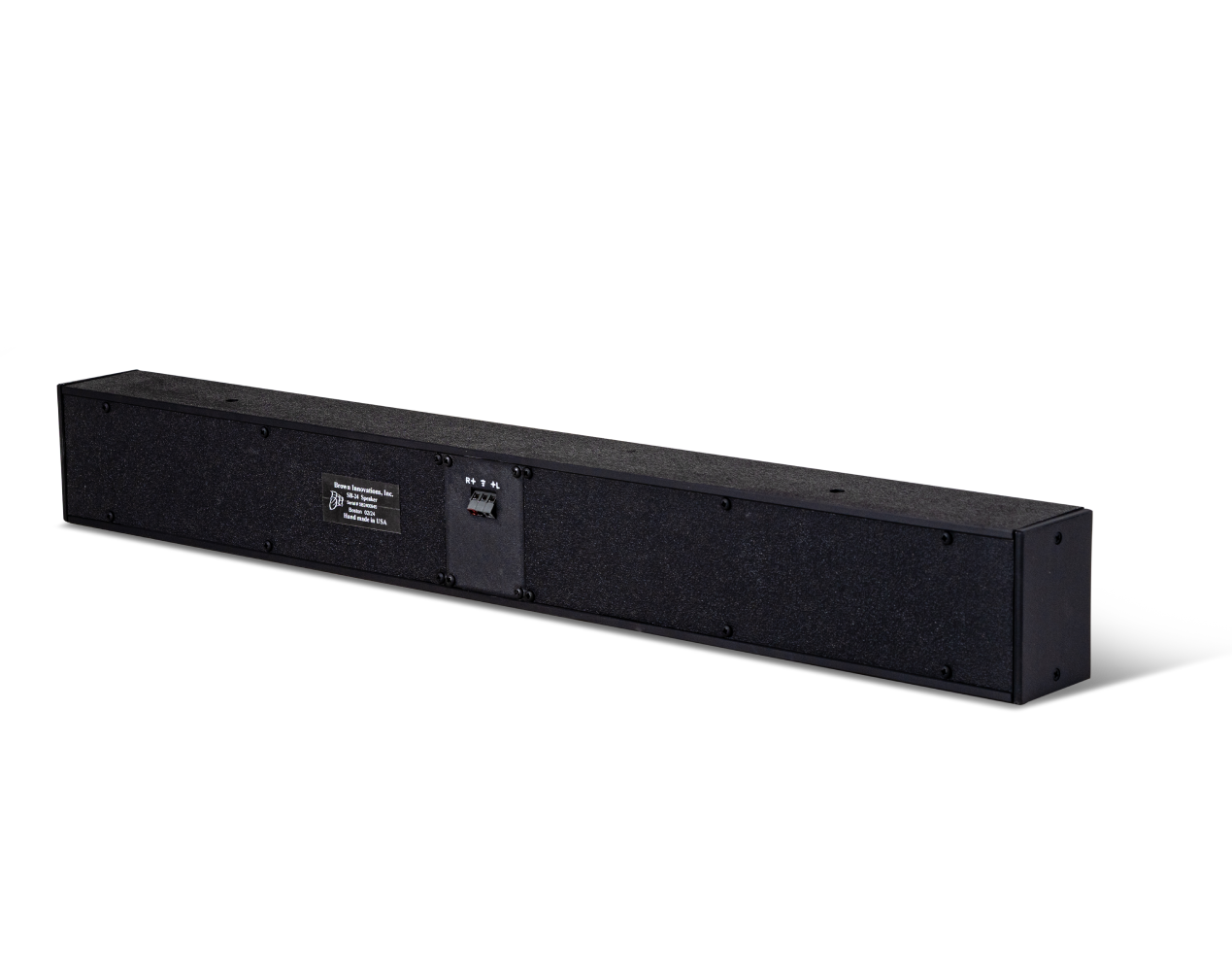

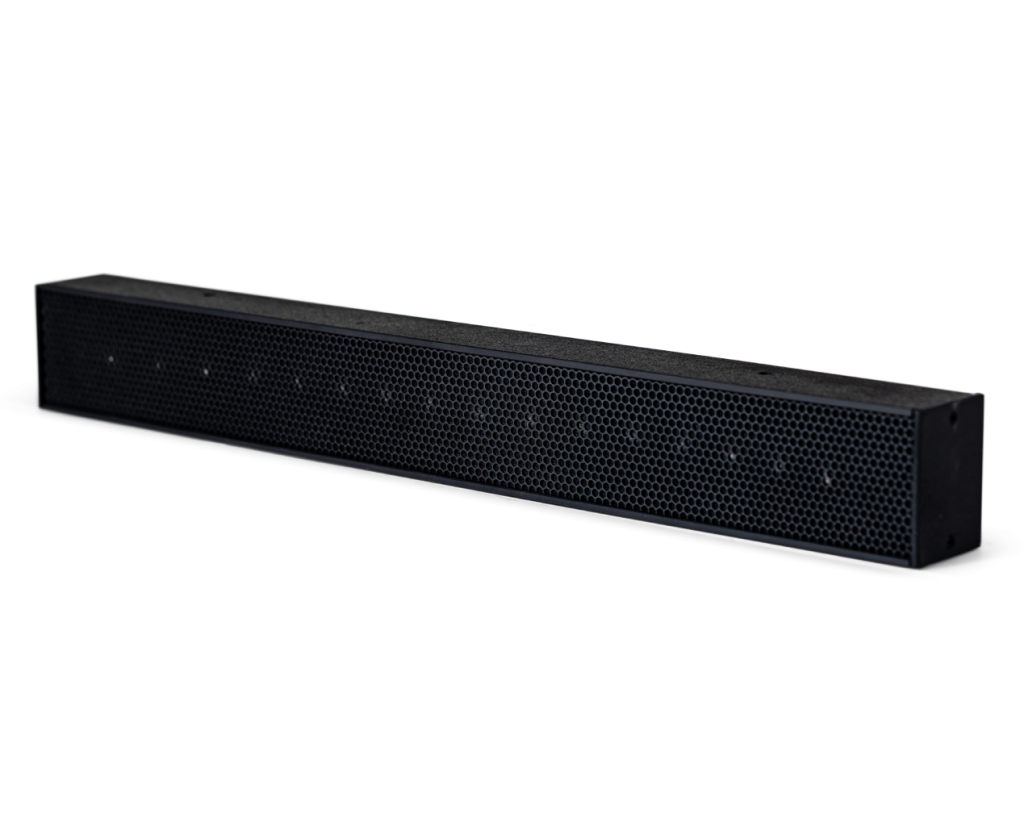

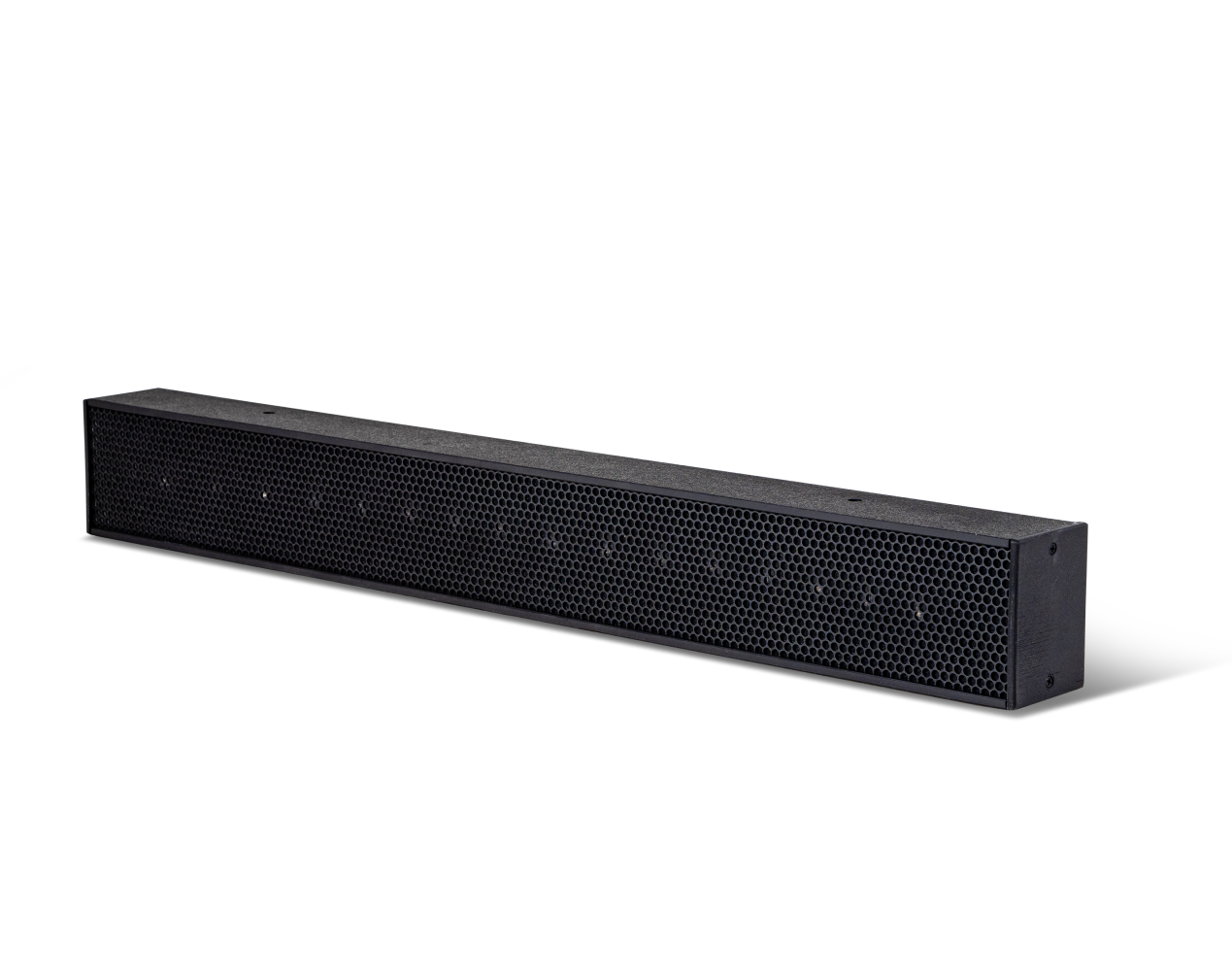

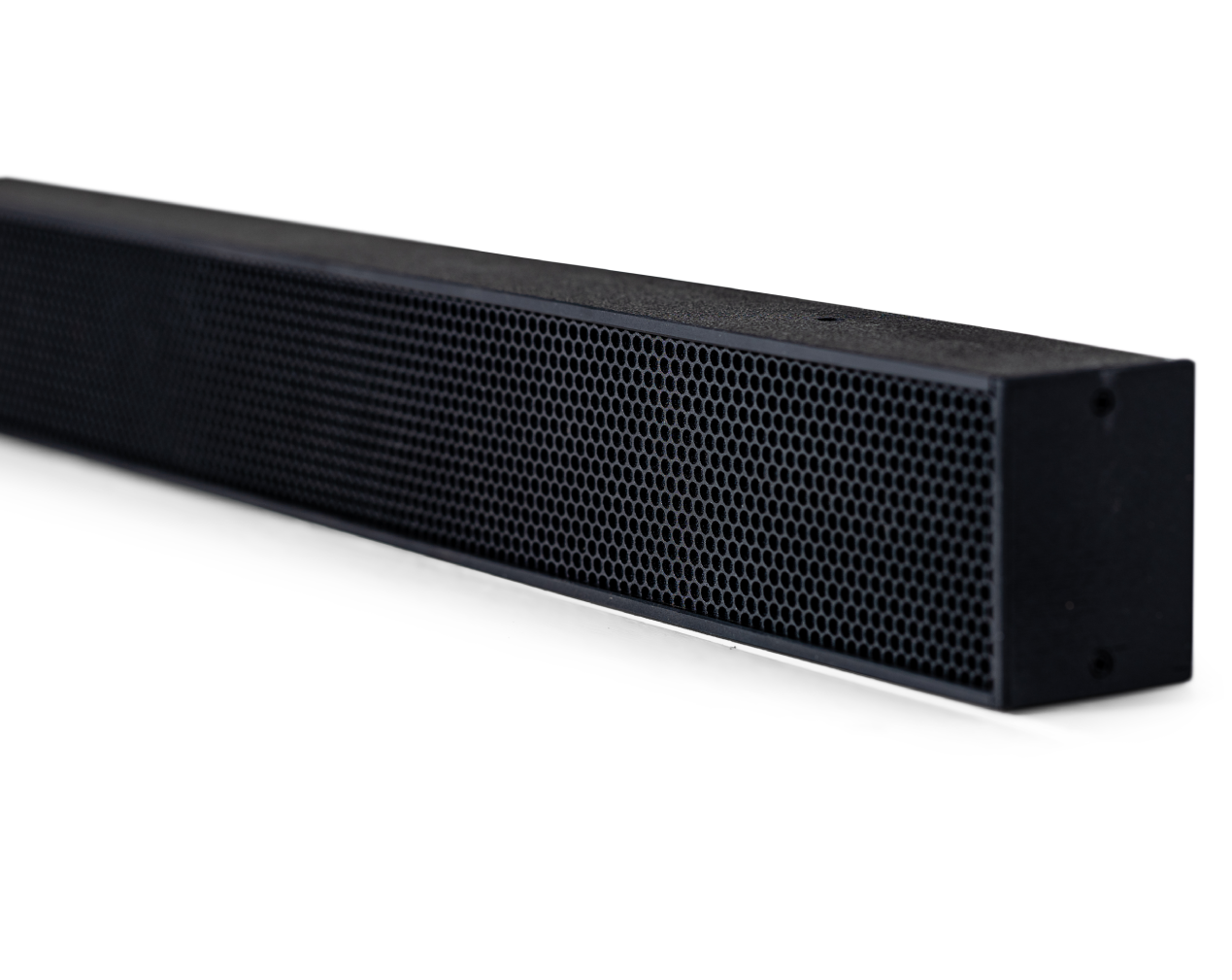

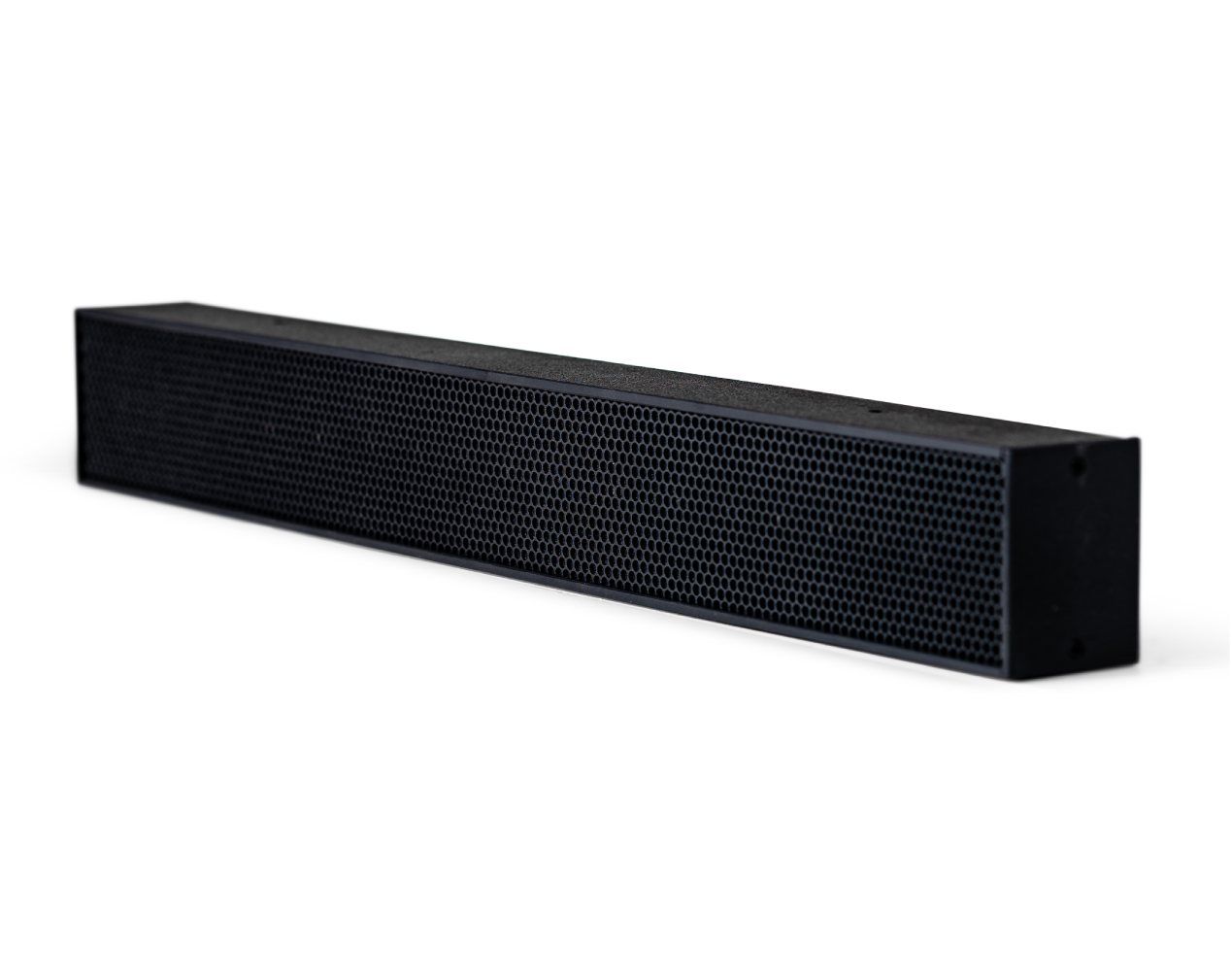

Sound Beam SB-24

Home » Directional Bar Speakers » Sound Beam SB24

Compact speaker with good isolation

The SB-24 provides an isolated audio experience for one to two listeners.

Available for Purchase
Enquire

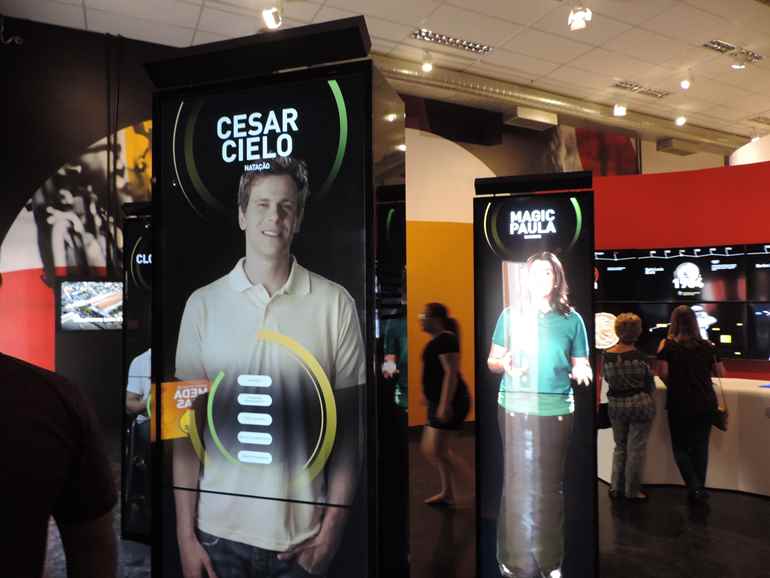

SB-24 Soundbeam on totem

Sound quality

Frequency resposne

Due to the depth of the speaker, the frequency response belies it’s smaller size. It gives a nearly full range response whilst still focussing the sound about 1m out from the speaker.

Contact us

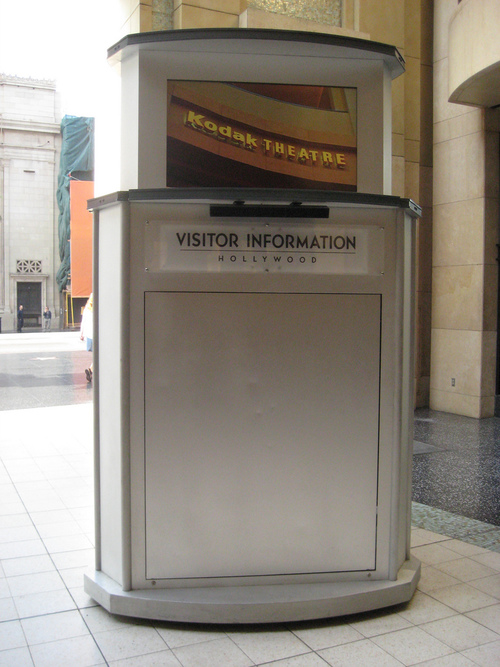

SB-24 in kiosk

Locations

Easy positioning

The SB-24 can be used with screens on a wall, but can also be integrated into totems for use with mall screens and exhibition spaces

Enquire

Discover which directional speaker matches your requirements

Answer a few questions to learn what’s best for you…

  • Experts in our field
  • Widest range of directional sound systems in Europe
  • Options for purchase or hire

Specifications

Amplification

Standard amp delivers audio in mono; can be wired for stereo for additional cost. Customize with Myriad for SmartVolume capabilities and sensor options

Stereo Separation

6 dB. The listening area is a beam 24“ wide that extends out 1 meter in front of the speaker. Listening Region Dimensions: 50mm ’H x 50mm W x 83mm D

Frequency Response

150Hz – 20kHz, +/- 2dB

Amplifier Power Requirements

Minimum: 1 watt per channel Maximum: 100 watts peak per channel

Sensitivity

100 dB SPL 1 watt, 1 meter

Impedance

4Ω Stereo, 8Ω Mono

Physical Dimensions

622mm W x 55.8mm H x 70mm D

Mounting

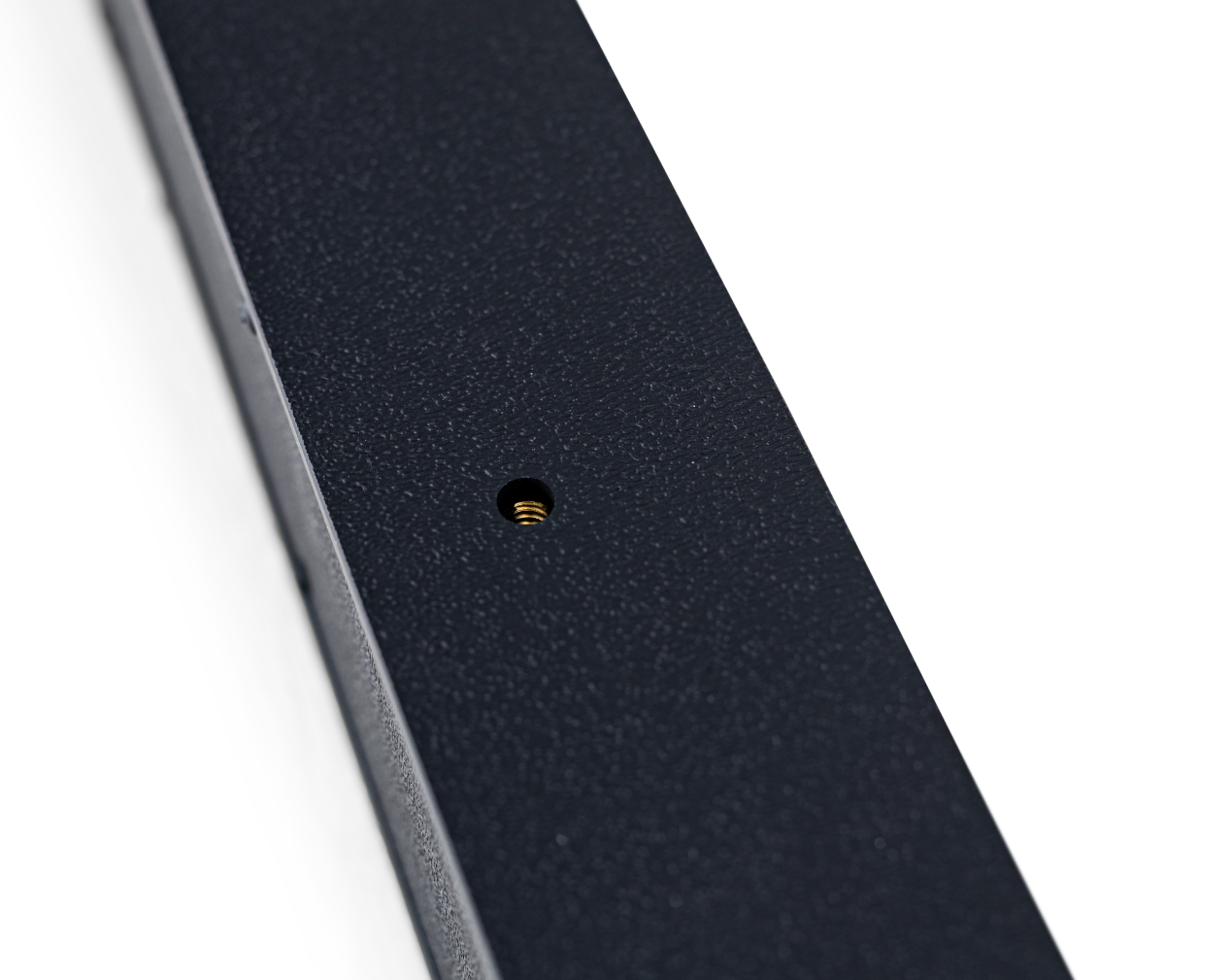

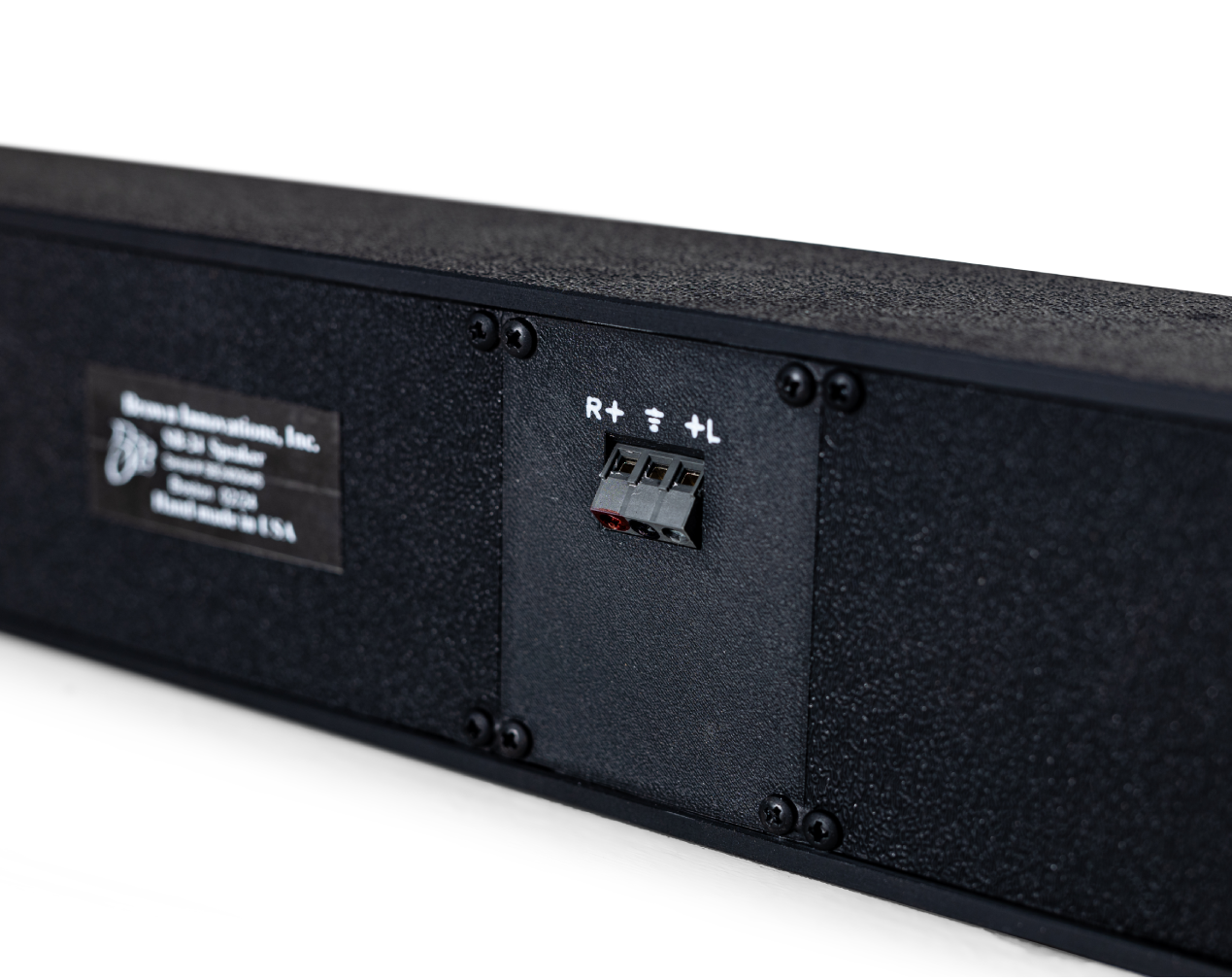

The SonicBeam has mounting grommets placed 15” apart on the top of the speaker. An optional bracket is available to mount the SonicBeam underneath a screen. Connect to the Myriad amplifier with 3-conductor speaker wire.

Power Supply

17 Vac 1.25 Amp 120 Vac external wall pack supplied 100 Vac and 220 Vac available
