Sound Beam SB40

Back to all products

Isolates stereo audio to a small group of listeners, 6 to 8 feet from the speaker.
Available for Hire & purchase
Enquire

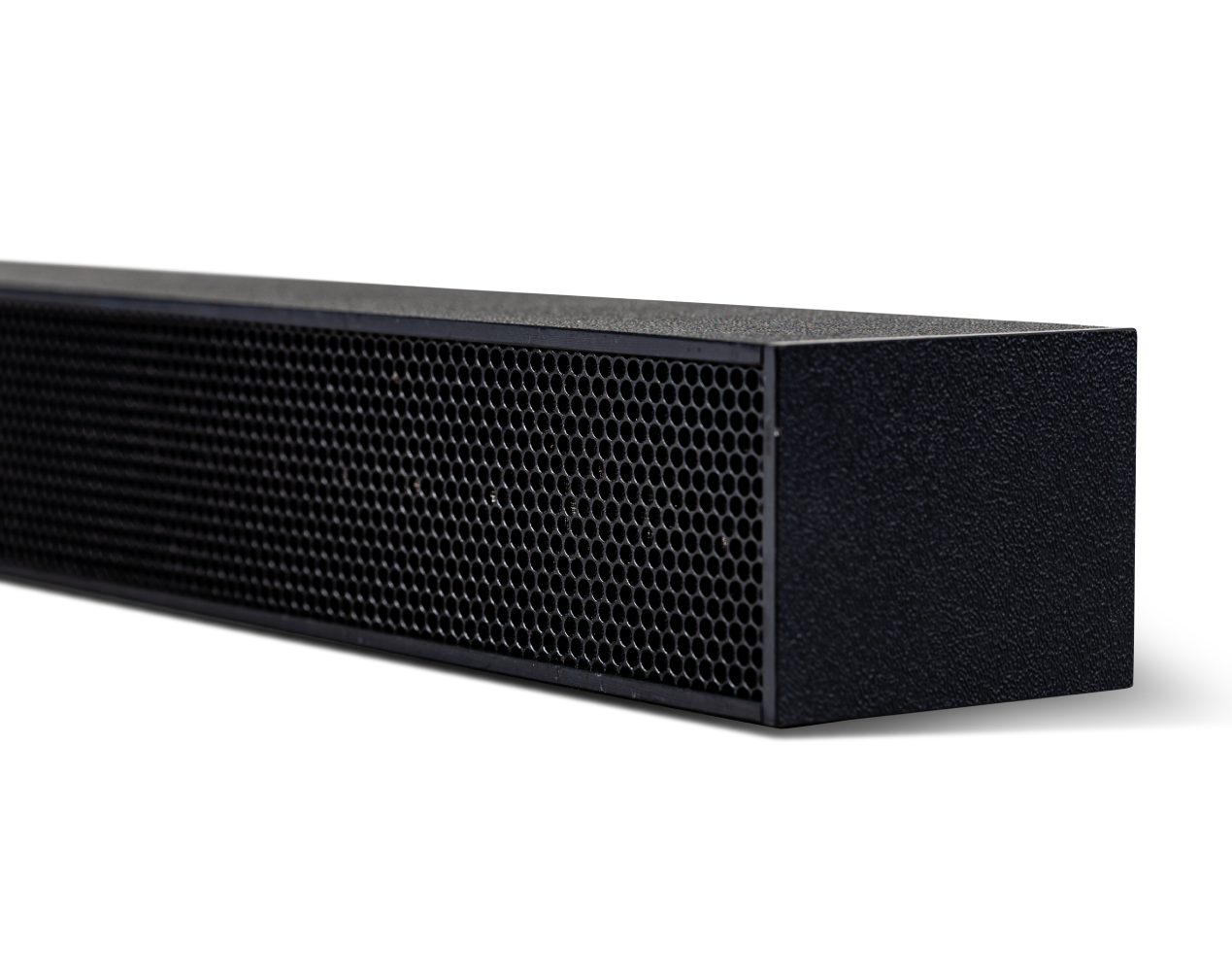

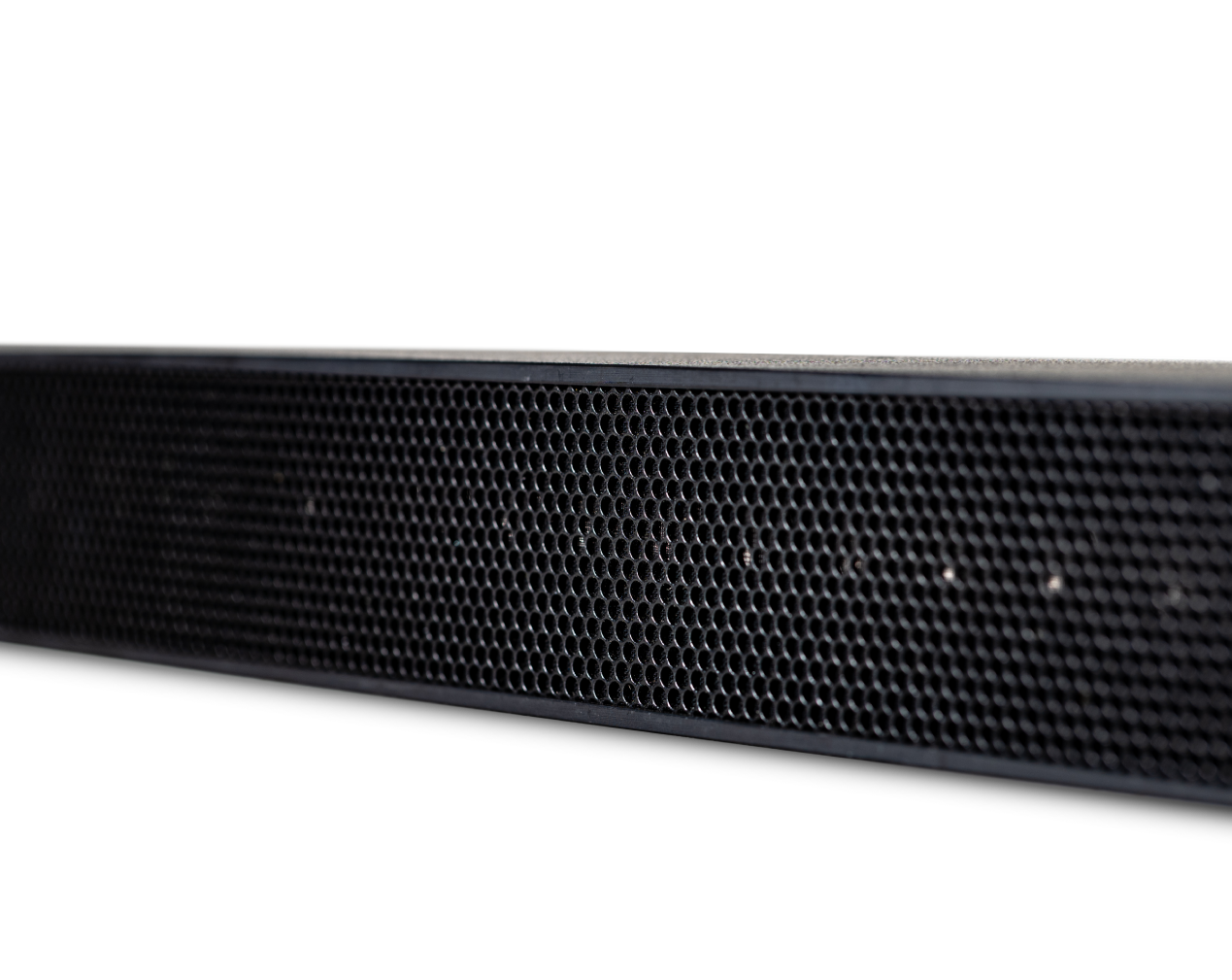

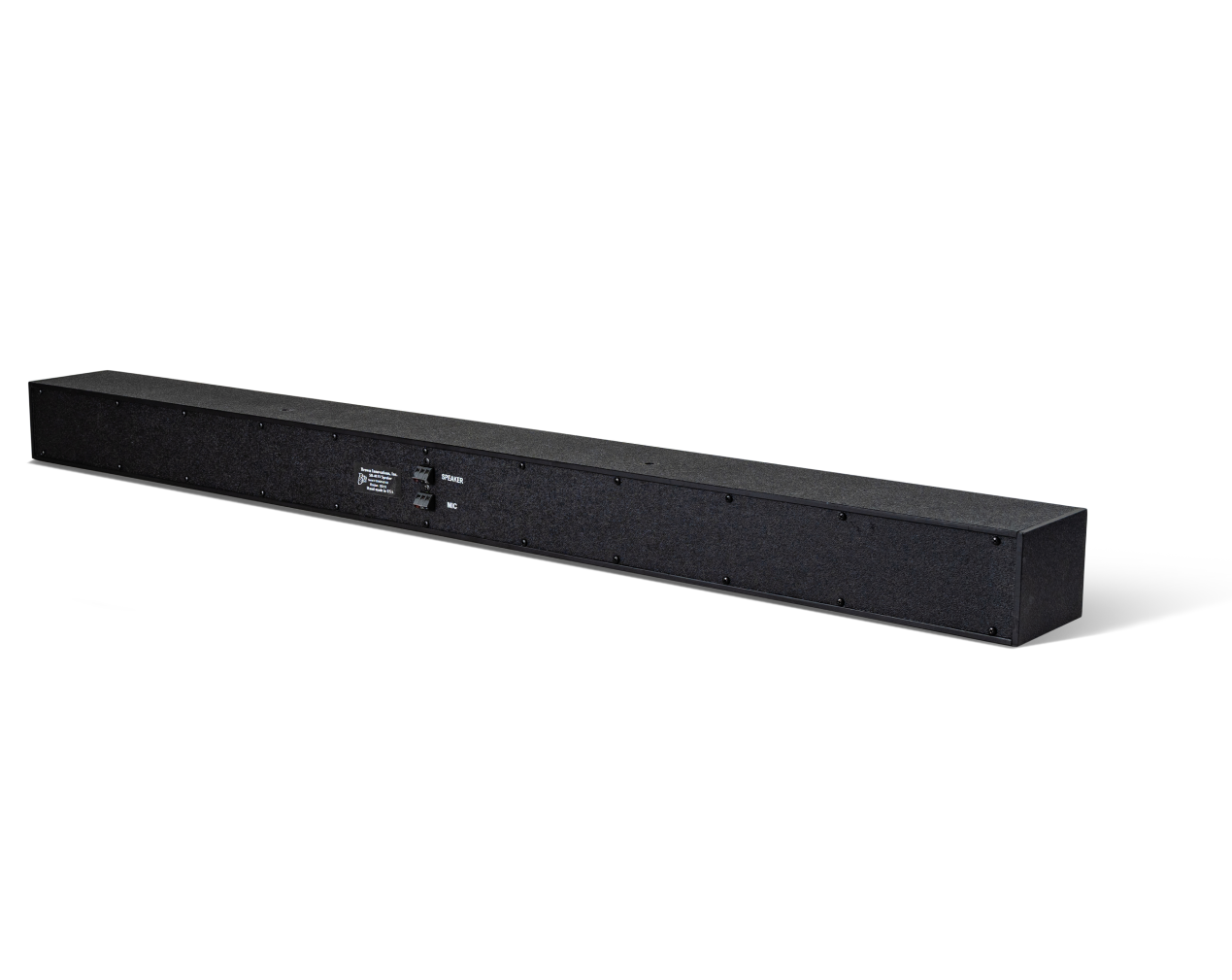

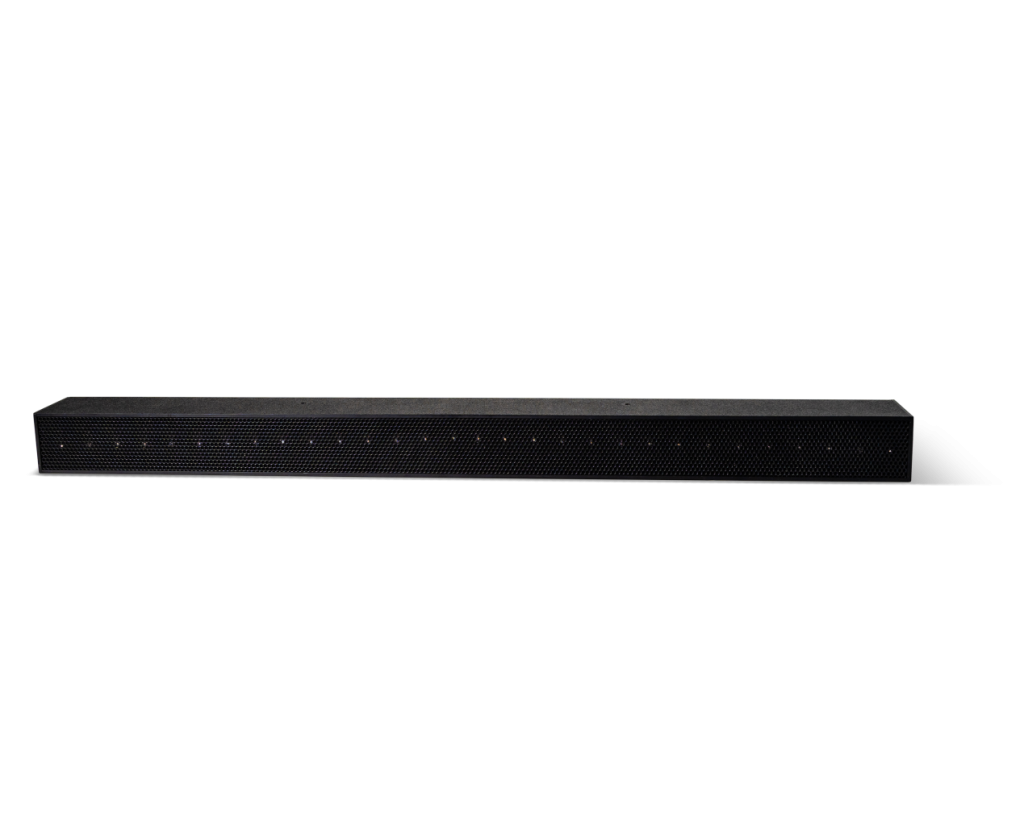

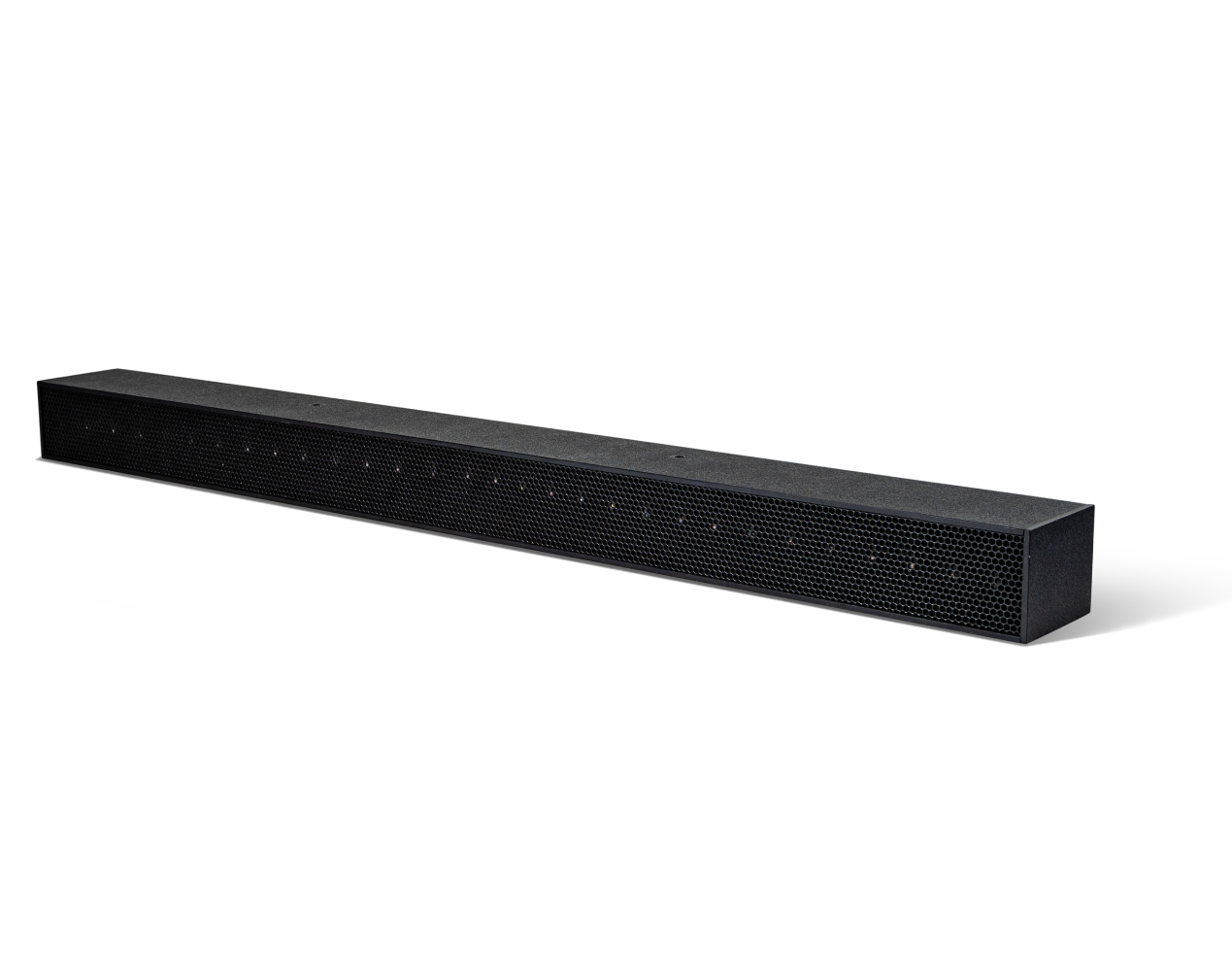

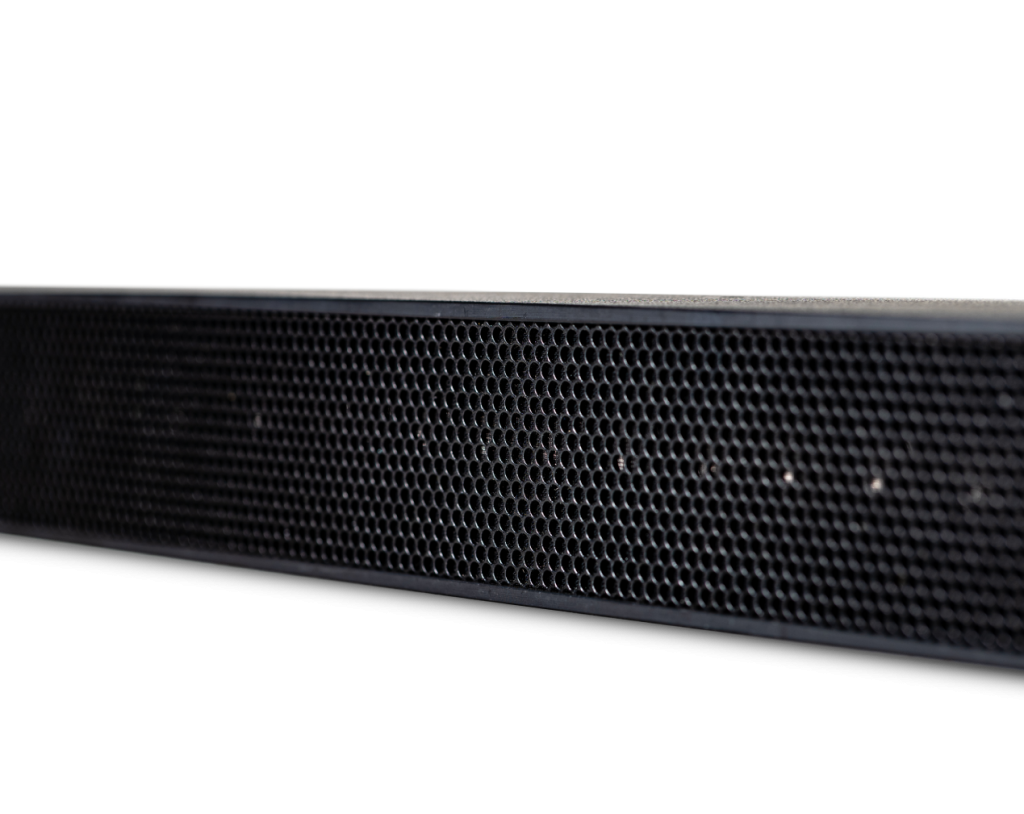

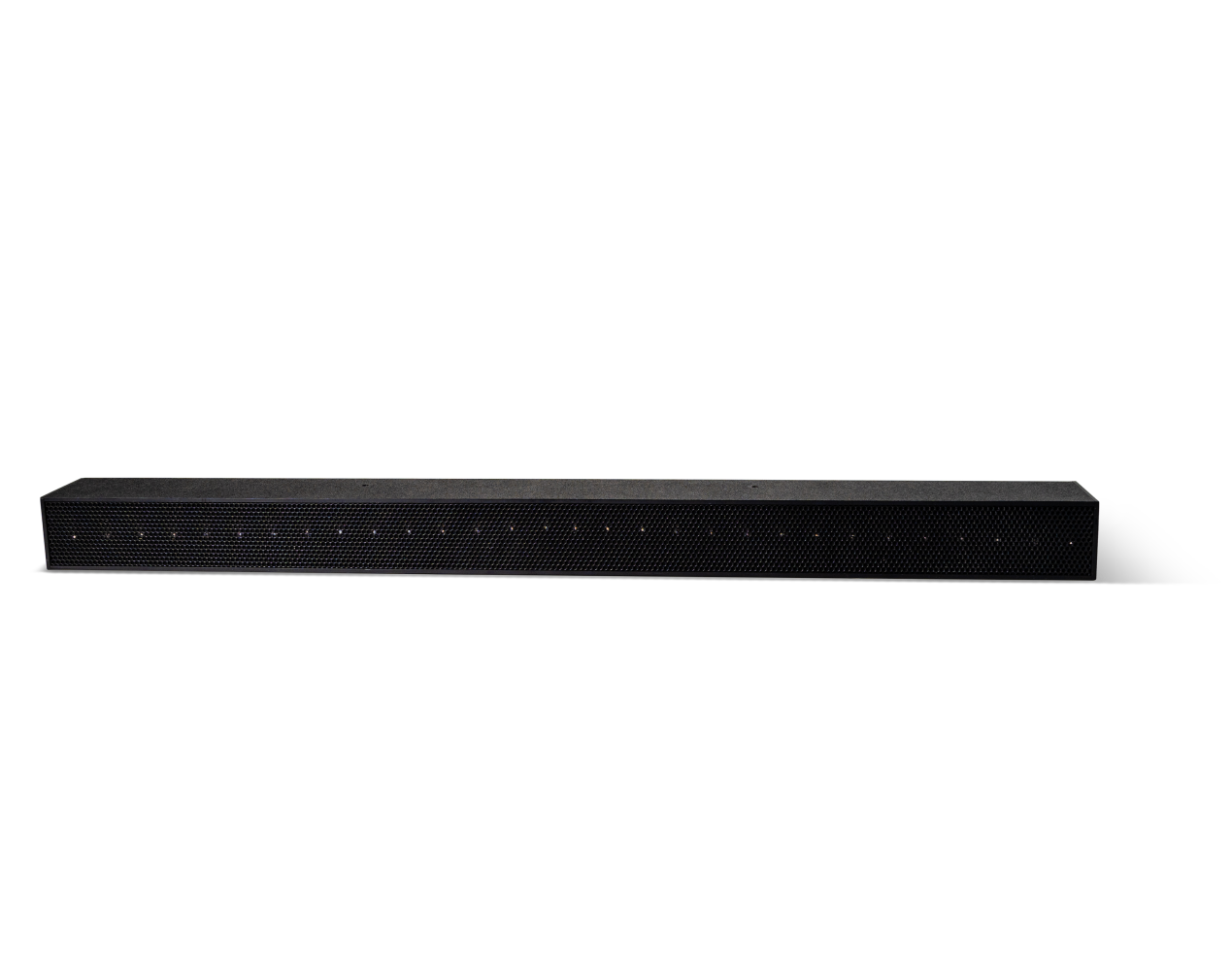

Brown SB-40 Sound beam

Home » Directional Bar Speakers » Sound Beam SB40

Versatile sound bar - ideal for use with medium display screens

The SB-40 provides an isolated audio experience for a small group of listeners.

Available for Hire & purchase
Enquire

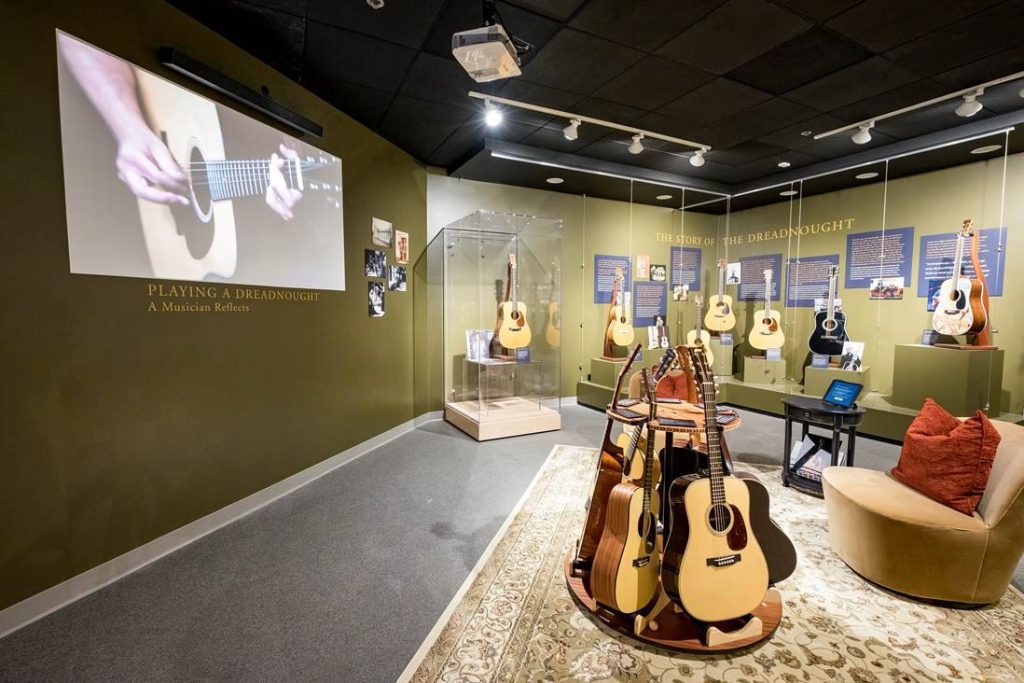

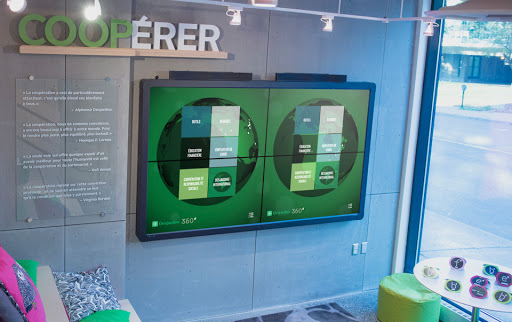

SB-40 Soundbeam above video wall

Stereo

Provides stereo output

Due to the setup of the speaker the SB-40 delivers 3 specific stereo images across the sound field

Contact us
Twin SB-40 above projection screen

Displays

Perfect for larger displays

The SB-40 can be used signly or in pairs across screens or projected images to provide the perfect sound field in front of the image.

Enquire

Discover which directional speaker matches your requirements

Answer a few questions to learn what’s best for you…

  • Experts in our field
  • Widest range of directional sound systems in Europe
  • Options for purchase or hire

Specifications

Amplification

Standard amp delivers audio in mono; can be wired for stereo for additional cost. Customize with Myriad for SmartVolume capabilities and sensor options.

Stereo Separation

6 dB.

Frequency Response

150Hz – 20kHz, +/- 2dB

Amplifier Power Requirements

Minimum: 1 watt per channel Maximum: 25 watts peak per channel

Sensitivity

100 dB SPL 1 watt, 1 meter

Impedance

4Ω Stereo, 8Ω Mono

Physical Dimensions

1000mm W x 73mm H x 93mm D Weight 2.67 kg

Mounting

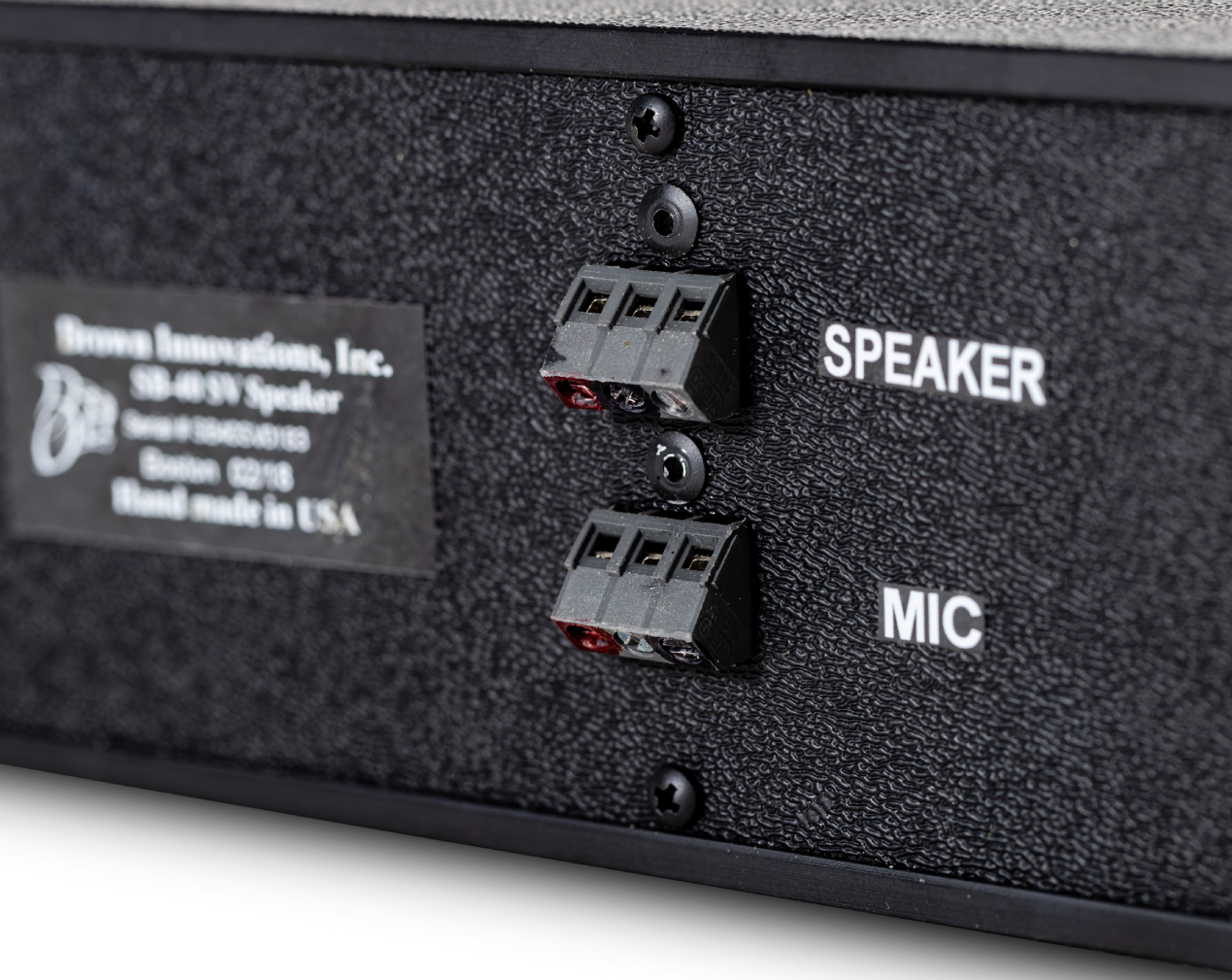

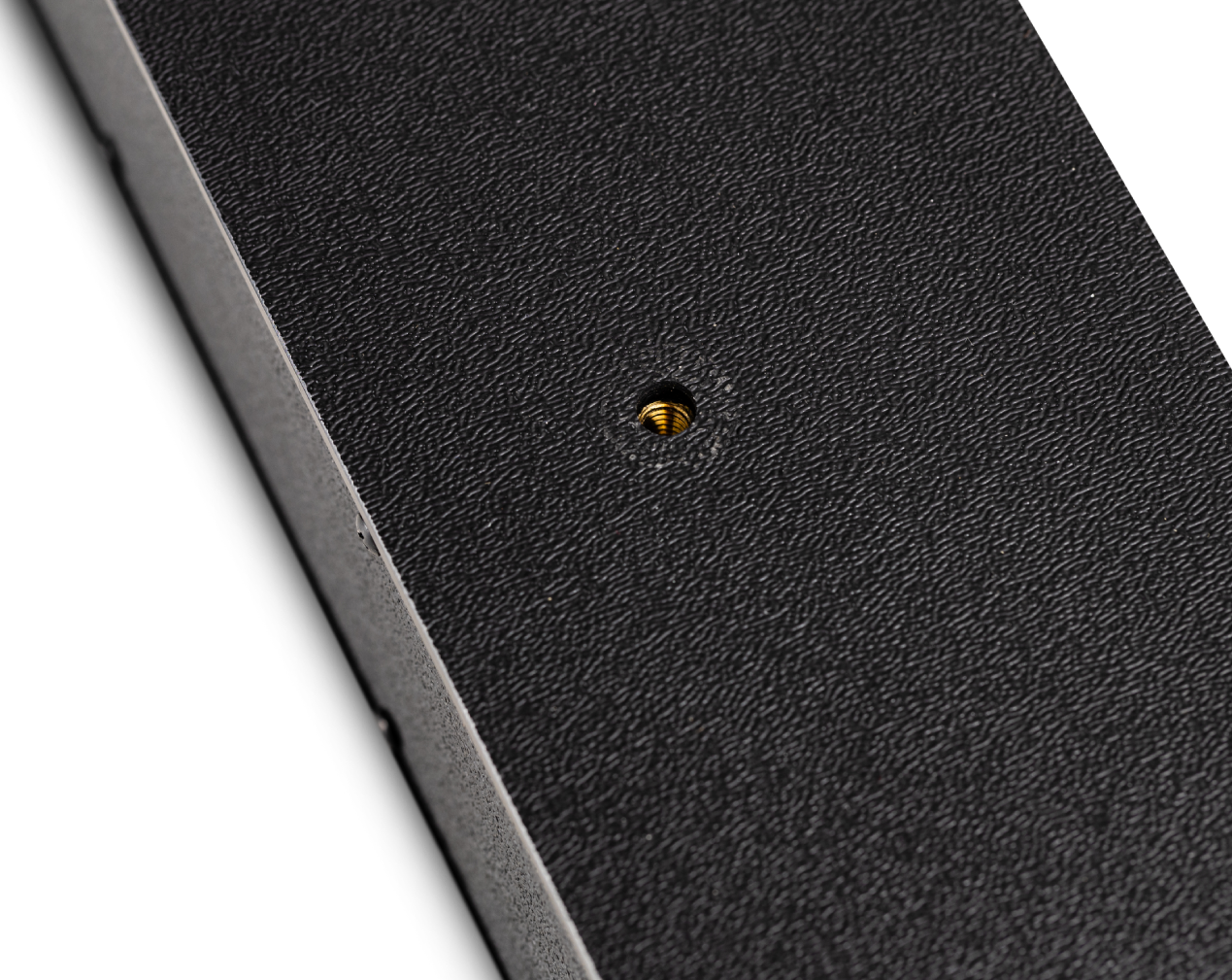

The SonicBeam has mounting grommets placed 15” apart on the top of the speaker. An optional bracket is available to mount the SonicBeam underneath a screen. Connect to the Myriad amplifier with 3-conductor speaker wire.

Power Supply

17 Vac 1.25 Amp 120 Vac external wall pack supplied 100 Vac and 220 Vac available.
